Our Products

Smartway has been able to take advantage of the latest technologies in the switchgear field and provide customers with the most economical and updated solutions of the best quality.

All products are manufactured to individual customers requirements, in accordance with strict quality procedures, ensuring reliability and cost effective solutions

Our proficiency in switchgear and control systems remains at the forefront of latest technology. This results from continues research and development and being regularly specified by consulting engineering companies to participate in major electrical projects for the United Arab Emirates markets.

Accreditation to ISO 9001:2008 and ASTA certifications demand strict control and audit of the procedures used throughout every aspect of company operation.

Our Official Distributors

Microidea

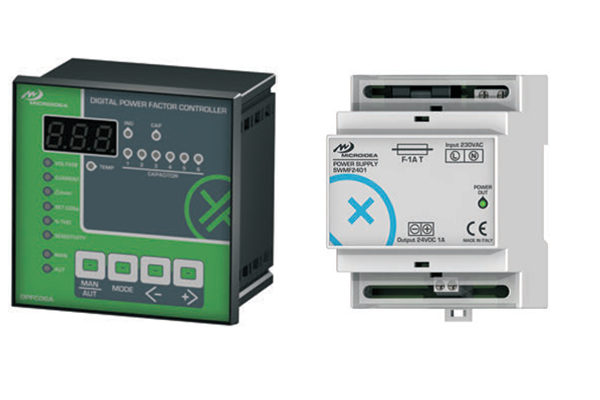

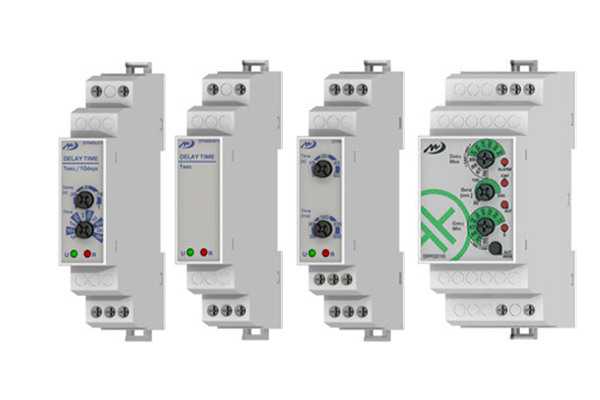

Microidea Srl was founded in 1975 with the aim of providing a qualified service in the assembly of electronic components and has 30 years experience in assembling, study and development of industrial automation products and custom projects. We develop and prototype on demand every kind of servo-hardware/sw controls like inverters for renewable energy, domestic care, medical, communications, rail transport applications and automotive. We also have our own line of power supply, battery chargers, timers and relay, power factor control and genset for every industrial application. We are at your disposal for every production and assembly need, (production area actually sizes 5000 square meters) and study and development for every new project.

Ducati Energia

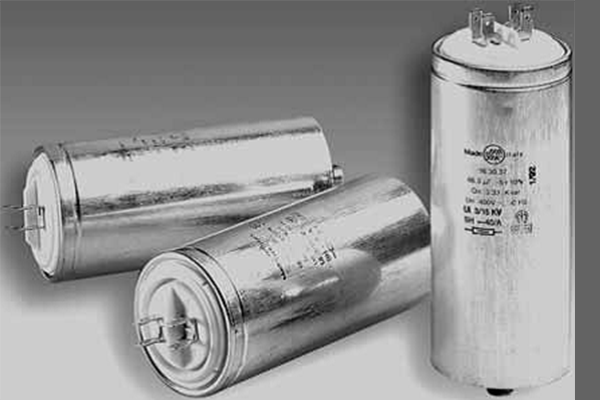

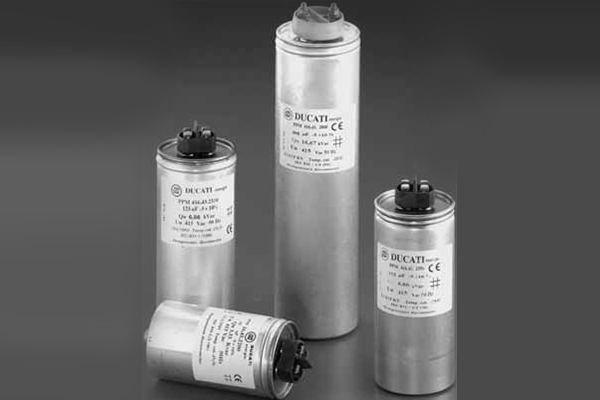

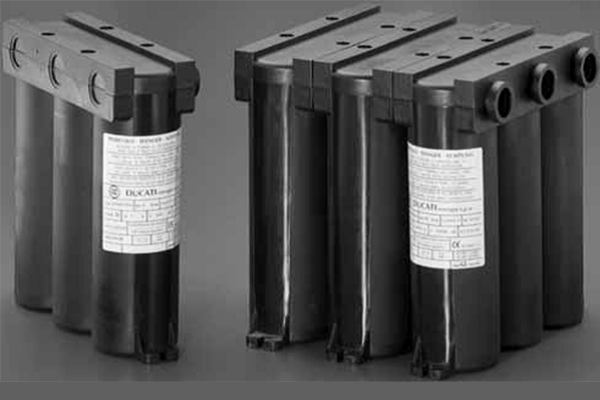

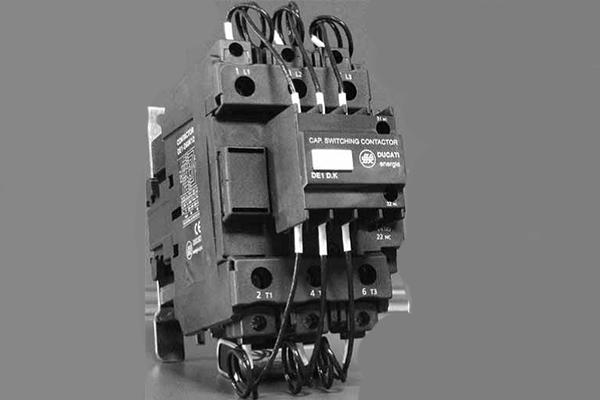

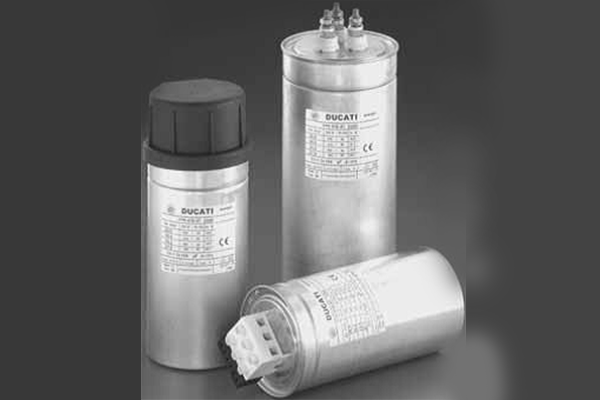

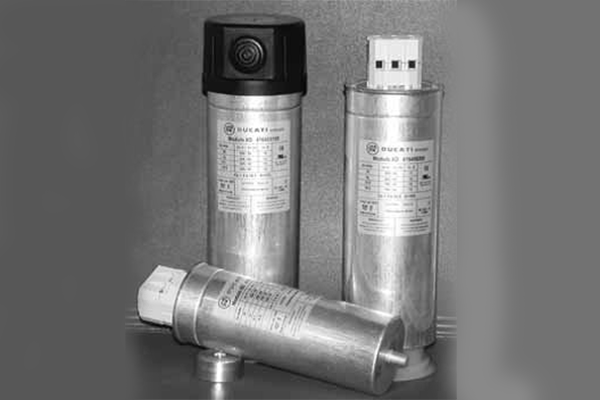

Ducati was founded in 1926 and was the first company in Italy, and among the first in the world, to introduce capacitors for the radiobroadcasting equipment produced by Guglielmo. Marconi. Building upon this tradition, which has always seen Ducati in the forefront of capacitor technology, the company has developed the innovative PPM and PPMh film. Superior performance and reduced dimensions compared to the by now obsolete paper and oil and gas solutions make PPM/PPMh capacitors the new standard of reference for industrial power factor correction systems.

Download Microdeia Brochure

Download Ducati Brochure

MDB (Main Distribution Board)

• Up to 2500A
• Type tested according IEC standards
• ASTA certified Bus bar system
• Rated short-time withstand current, Icw : 50kA for 1Sec.
• Rated peak withstand current, Ipk : 105kA
• Form I, II, III, & IV up to Type-7, modular fixed type.

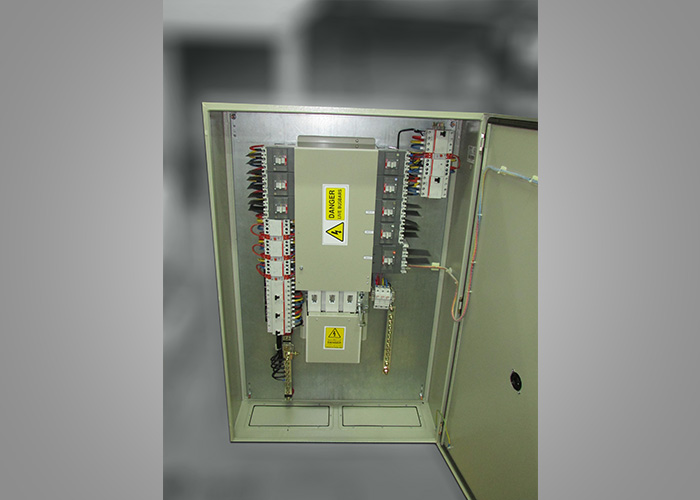

SMDB (Sub Main Distribution Board)

• Form I, II, III, & IV up to Type-7, modular fixed type.
• Design adheres to IEC standards and local Authority regulations

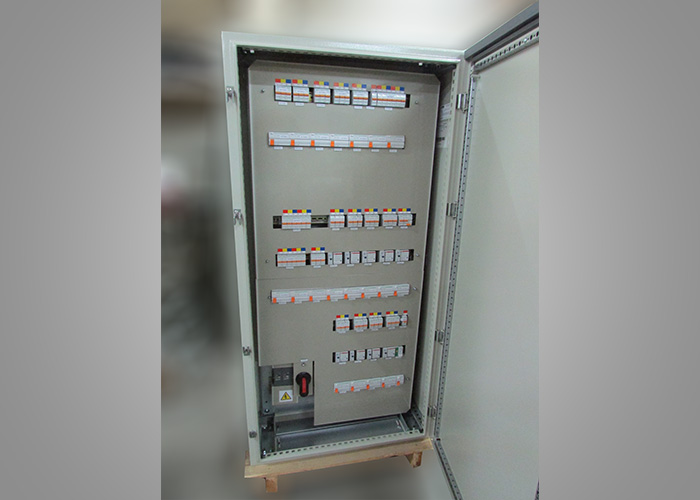

DB (Distribution Board)

• Final DBs - Flush and surface mounted.
• Tailor made according to requirement and specification

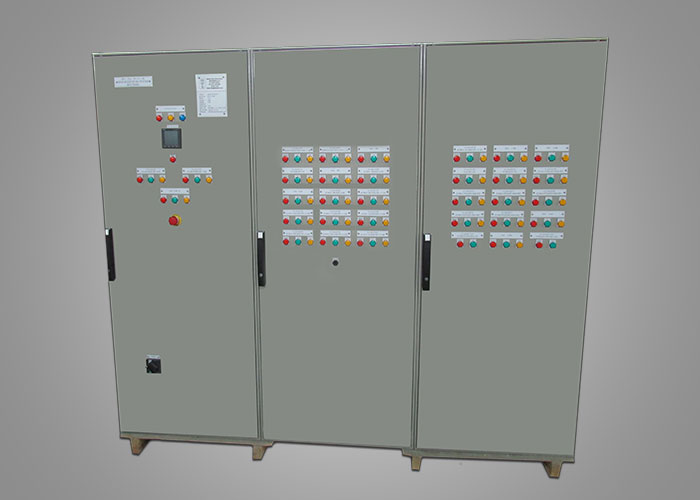

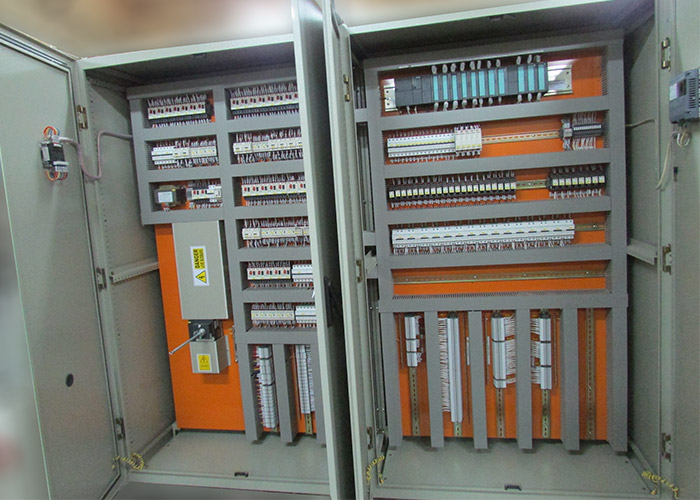

MCC (Motor Control Center)

• Form I, II, III, & IV up to Type-7, modular fixed type.
• Type-2 co-ordination according to IEC standards.
• Motor Management Systems / Intelligent Motor Protection Relays.
• Manual and Auto operations with relay based or PLC based control with VFDs / Soft starters.
• Provisions for BMS control with serial communication options.

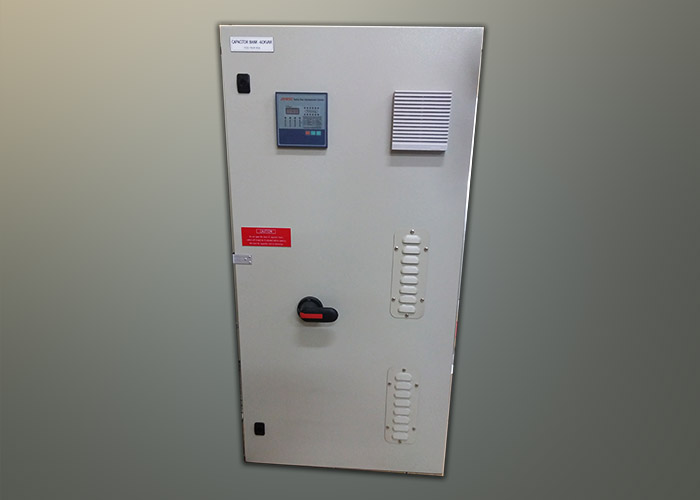

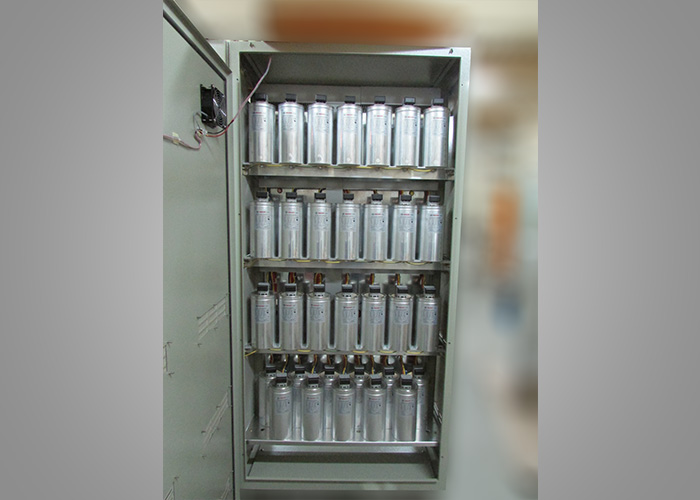

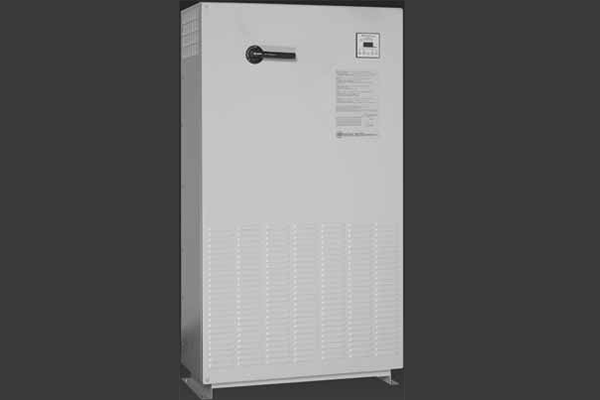

Capacitor Bank Panels

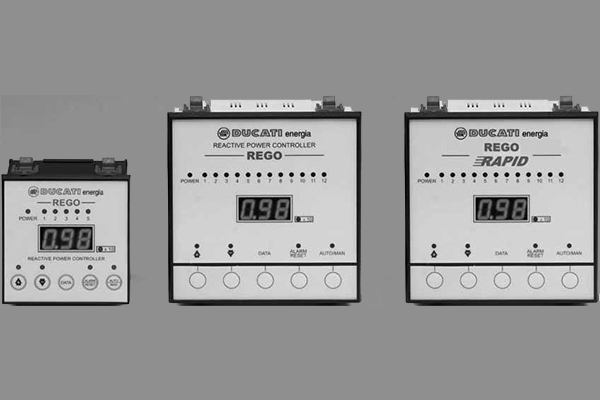

• With automatic PF regulator

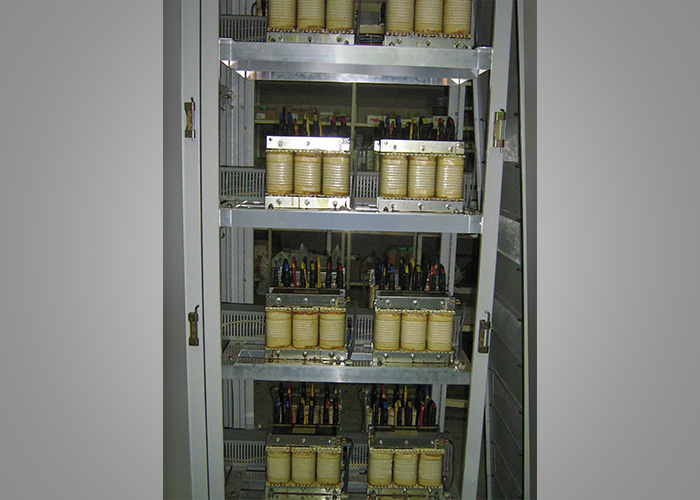

• With or without detuned line reactors
• Provided with forced ventilation / cooling fan
• Wall mounting / Standalone panels in Form-II construction

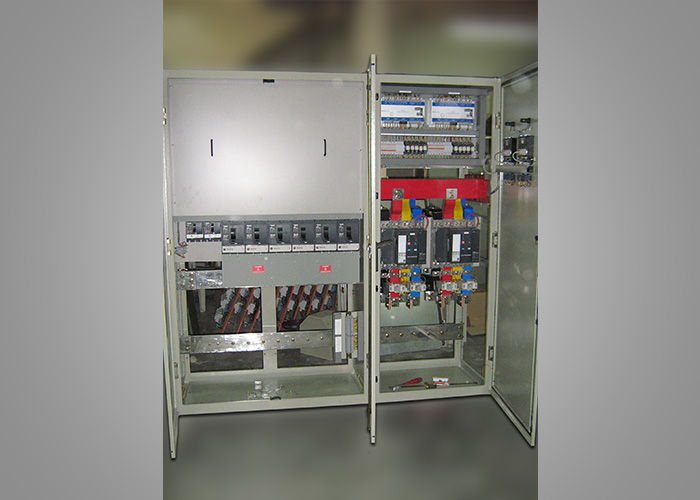

Synchronization Panel

• 3-pole or 4-pole system as required
• Various combinations of load transfer by ACBs, MCCBs or Contactors
• Protection class up to IP 54
• Load sharing/load shedding
• Automatic and manual synchronizing
• Factory built to client's specifications
• Ratings up to 630A
• Control functions available for engine monitoring, warm-up and cool down periods, emergency shutdown, multi attempt engine start control, engine test runs

Feeder Pillars

• Proven track record for street lighting control
• Approved by Dubai Muncipality, DEWA, RTA Dubai and Ministry of Public Works - UAE
• In GRP and sheet steel enclosures adhere to IEC standards for out door applications

Meter cabinets

• Approved by Dubai Muncipality, DEWA, RTA Dubai and Ministry of Public Works.
• In GRP / Thermoplastic (Hensel) / Sheet steel / Aluminium enclosure
• According to local authority specification & regulations

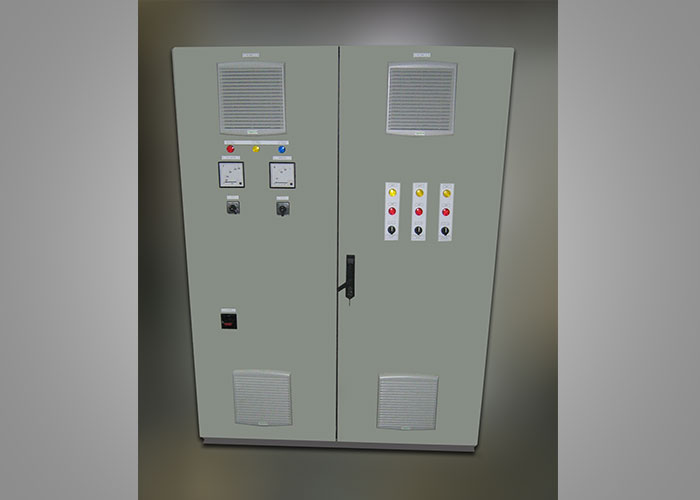

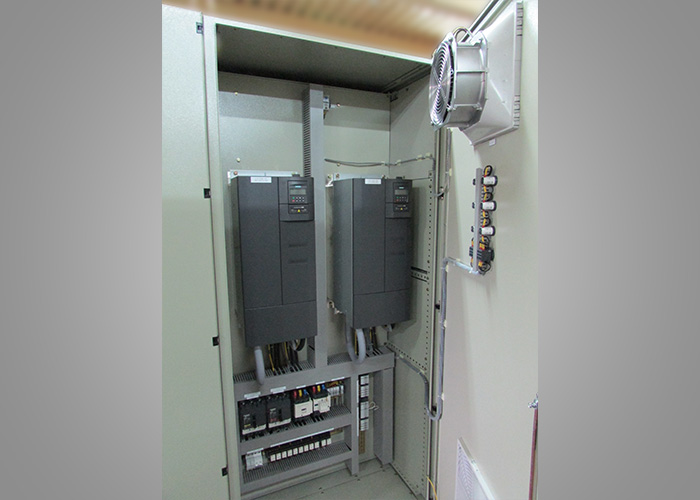

VFD Panels

• 0.2KW to 37KW, 200-240V 1Ph, 380 - 480V 3Ph, 50/60Hz
• Suitable for Fan / Pump/ HVAC applications
• Programmable for Variable or Constant torque
• Built-in motor protection
• Energy saving
• Electromagnetic compatibility / Built in EMC filter
• Optional input/output line reactors
• Designed for less Total Current Harmonics Distortion
• Complies to IEC/EN61800-5-1, IEC/EN 61800-2, IEC/EN 61800-3
• Danfoss / Schneider Electric / Allen-Bradley / ABB / Lenze / LG / Siemens / Reputed VFDs
• Manual and Auto operation through PLC / BMS
• Serial communication options to integrate with other systems

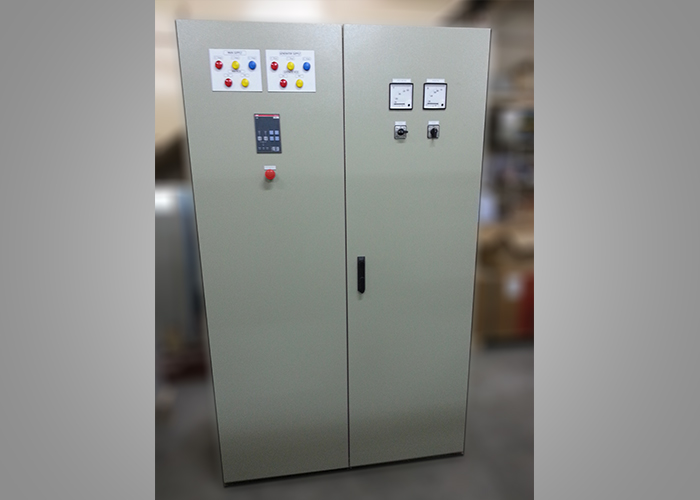

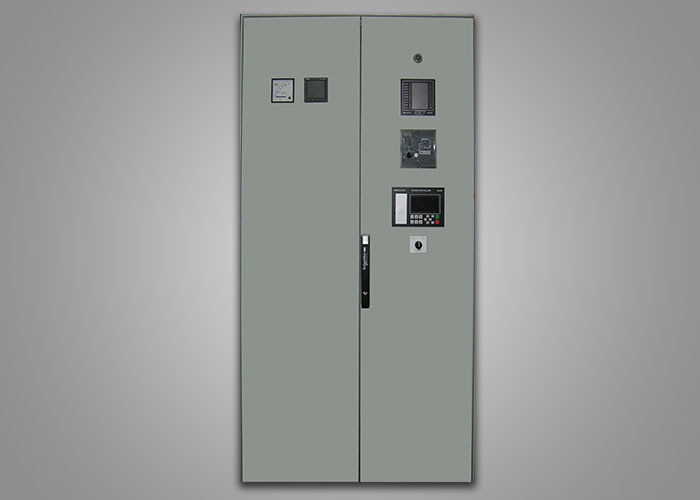

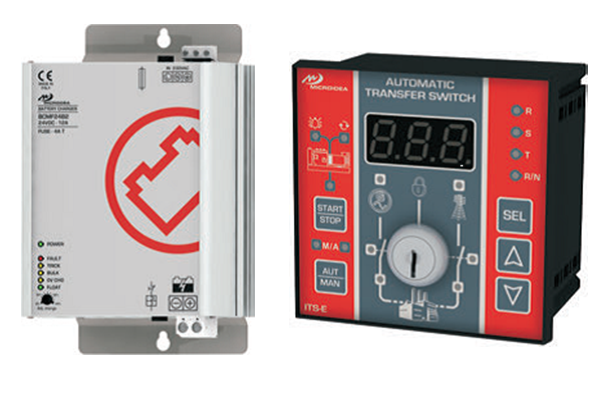

ATS(Auto Transfer Switch) Panel (63A to 630Amps) Functions

• Automatic Transfer Switch - ATS.
• Compact design.
• Mechanically interlocked switching.
• Connection ready for external logic control.
• Protection degree: IP54 (standard device). And IP65 (in GRP)
